News

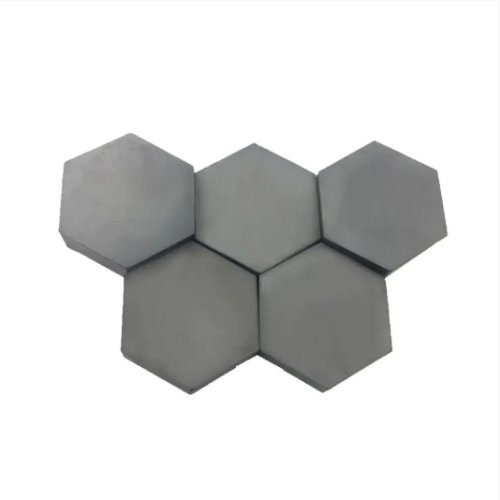

Boron carbide (B₄C) ceramics are the leading material for lightweight ballistic armor, offering hardness second only to diamond (>30 GPa) at one-third the density of steel (2.52 g/cm³), enabling armor systems over 50% lighter than steel at equivalent protection. Ballistic performance relies on projectile blunting, ceramic cone formation, crack deflection, and backing plate deformation. However, low fracture toughness (2–3 MPa·m¹/²) limits multi-hit capability, driving toughening advances such as field-assisted ceramics (>37 GPa hardness, 935 MPa strength), TiB₂ and carbon nanotube reinforcement, and conductive ScB₂C₂ networks that double toughness to ~10.5 MPa·m¹/². Applications span personal armor inserts, vehicles, aircraft, and naval compartments, continually redefining lightweight protection performance.

Boron carbide's neutron absorption relies on the ¹⁰B isotope, yet natural boron contains only 19.9% ¹⁰B, requiring isotopic enrichment and high-purity processing for nuclear applications. Separation is exceptionally difficult due to nearly identical atomic masses, with fast reactor control rods needing 65%–90% ¹⁰B abundance. In 2026, China commissioned its first hundred-ton-scale boron-10 enrichment facility, achieving 99.7% abundance and securing a self-reliant supply chain for nuclear-grade materials.

Boron carbide's high hardness and low density are offset by low fracture toughness (2–3 MPa·m1/2). Toughening strategies—adding TiB2/SiC particles, in-situ graphitized nanodiamonds, whiskers, carbon fibers, and nanotubes—raise toughness by 50–100% through crack deflection, bridging, and pull-out mechanisms. Breakthroughs include conductive ScB2C2 networks doubling toughness to ~10.5 MPa·m1/2 and enabling electrical discharge machining, and dual-scale B4C-TiB2 composites achieving 5.66 MPa·m1/2 with 786 MPa strength.

Boron carbide (B₄C) faces significant sintering challenges due to its strong covalent bonding (>90%), extremely low self-diffusion coefficient, and surface B₂O₃ oxide layers, requiring temperatures above 2300°C for conventional densification. Recent advances have established multiple sintering routes: pressureless sintering (cost-effective, up to 95% density), hot pressing (1825°C with liquid-phase aids, achieving 700–820 MPa flexural strength), spark plasma sintering (96–99.2% density in minutes at 1750°C/88 MPa), and hot isostatic pressing for post-densification. Carbon additives play a critical role by removing surface oxides and lowering sintering onset to ~1350°C. Emerging research focuses on porous structures for nuclear applications and reveals density anomalies in additively manufactured B₄C. The field is moving toward multi-technology synergy to balance density, grain size, and cost.

Boron carbide pellets (B₄C Pellets) are indispensable functional components in nuclear reactors. Leveraging the exceptionally high thermal neutron absorption cross-section of the boron-10 (¹⁰B) isotope, they fulfill two core missions: reactivity control and neutron shielding. From control rod absorbers to burnable poisons, from fast reactor shielding to spent fuel storage, boron carbide pellets safeguard the safe operation of nuclear energy systems in multiple forms.

Nuclear-grade boron carbide (B₄C) powder, leveraging ¹⁰B's ~600 barns neutron absorption cross-section, is critical for reactor safety. Classified under ASTM C750-24 into core and non-core grades, it serves as precursor for control rods, sintered pellets, B₄C/Al neutron-absorbing plates, and shielding composites. Preparation routes—carbothermal reduction, direct synthesis, and emerging microwave sintering—determine purity and cost, making this powder essential to nuclear safety infrastructure.

Boron carbide (B₄C) serves aerospace applications in thermal protection, radiation shielding, propulsion, and lightweight armor. Its unique properties—low density (2.52 g/cm³), high melting point (2450°C), and extreme hardness—enable reaction-bonded ceramics with improved fracture toughness, B₄C-ScB₂C₂ composites with exceptional laser tolerance, and coatings offering 3.3× better electron shielding than aluminum. Advanced sintering technologies continue expanding its aerospace potential.

Premium boron carbide (B₄C) powder is a superhard abrasive (Mohs 9.3–9.5, Knoop 2600–3200) with low density (2.42 g/cm³) and high thermal stability (>2450°C). It delivers superior performance in precision grinding, lapping of ceramics and sapphire, semiconductor processing, and wear-resistant components such as nozzles and seals—offering significantly extended service life compared to conventional materials.

Nuclear-grade boron carbide fabrication involves powder synthesis (carbothermal or direct elemental routes, requiring ≥98.5% purity), hot-pressing sintering (2150°C/20 MPa for densification to ≥92% theoretical density), and porous ceramic design for helium gas management in high-temperature gas-cooled reactors. These processes collectively enable reliable nuclear-grade components meeting stringent safety requirements.

Boron carbide (B₄C) control rods are the primary safety mechanism in nuclear reactors, leveraging ¹⁰B's high neutron absorption (~600 barns) for startup, power regulation, and emergency shutdown. With melting point 2450°C and chemical stability, they are deployed as powder-filled tubes, sintered pellets, or porous ceramics depending on reactor type. Sintering precision and swelling management remain key technical focuses for nuclear-grade applications.

Boron carbide (B₄C) is a superhard ceramic (second only to diamond) with low density and high thermal stability. Its mature industrial applications span abrasives for hard-material processing, wear-resistant components (seals, nozzles, bearings) offering steel-like durability at one-third weight, and refractory additives for high-temperature environments up to 2450°C.

Nuclear-grade boron carbide (B₄C) is a critical neutron absorber in nuclear reactors, utilizing ¹⁰B's high capture cross-section (~600 barns) for safe neutron control. It demands extreme purity and microstructural precision, with advanced sintering technologies enabling dense ceramics. Global nuclear expansion drives rising demand, positioning B₄C as a cornerstone of nuclear safety and next-generation reactor development.
