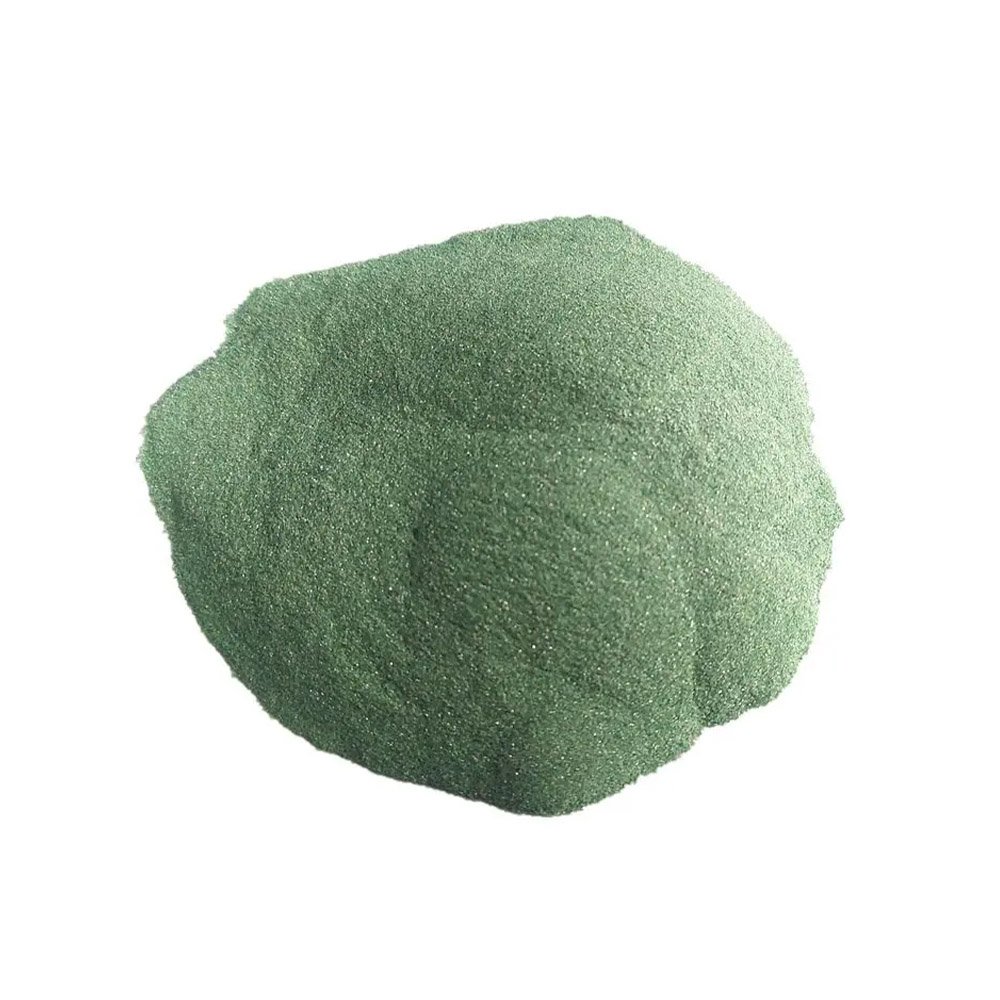

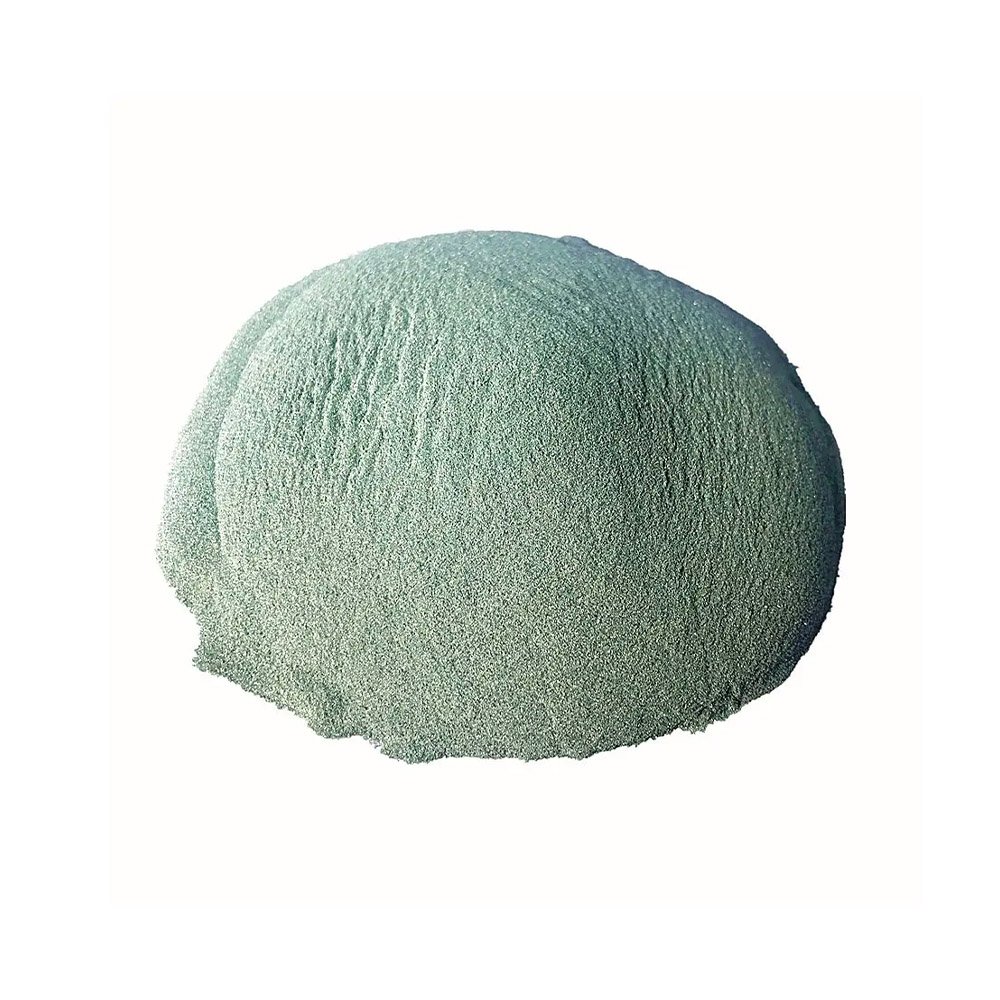

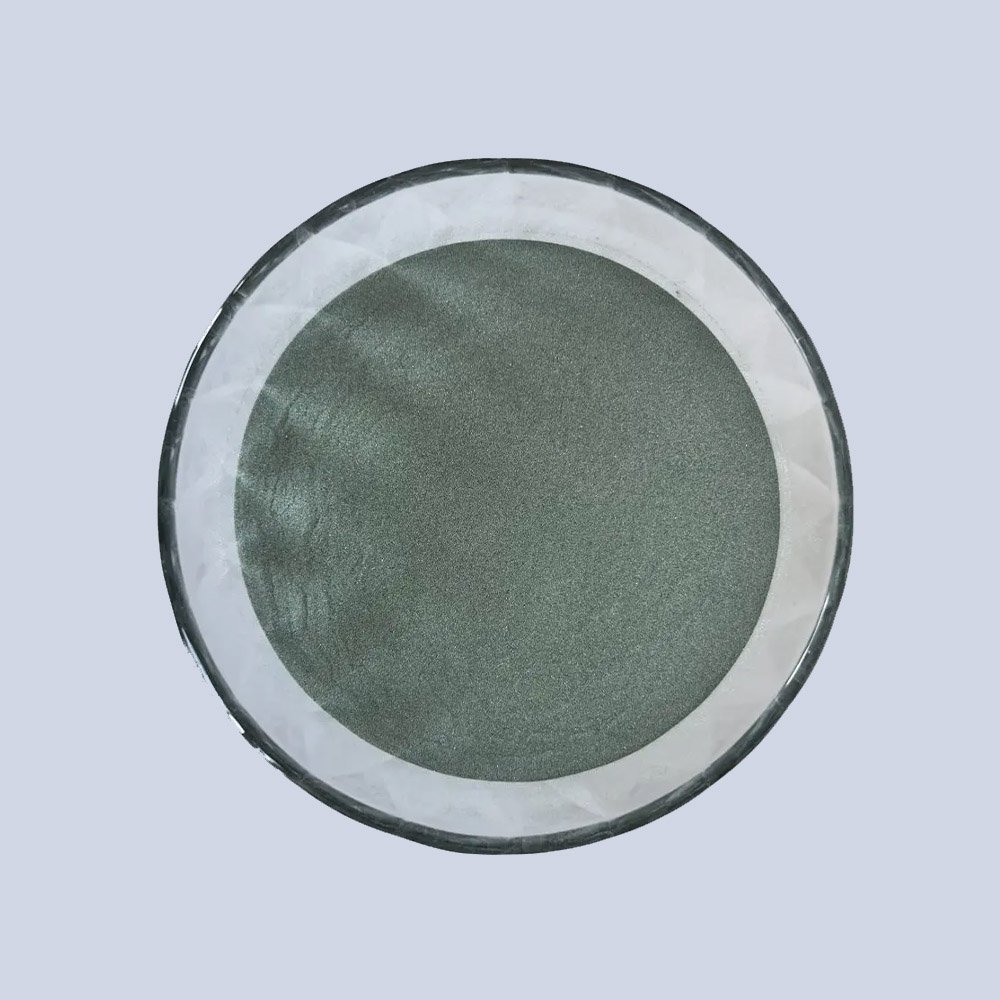

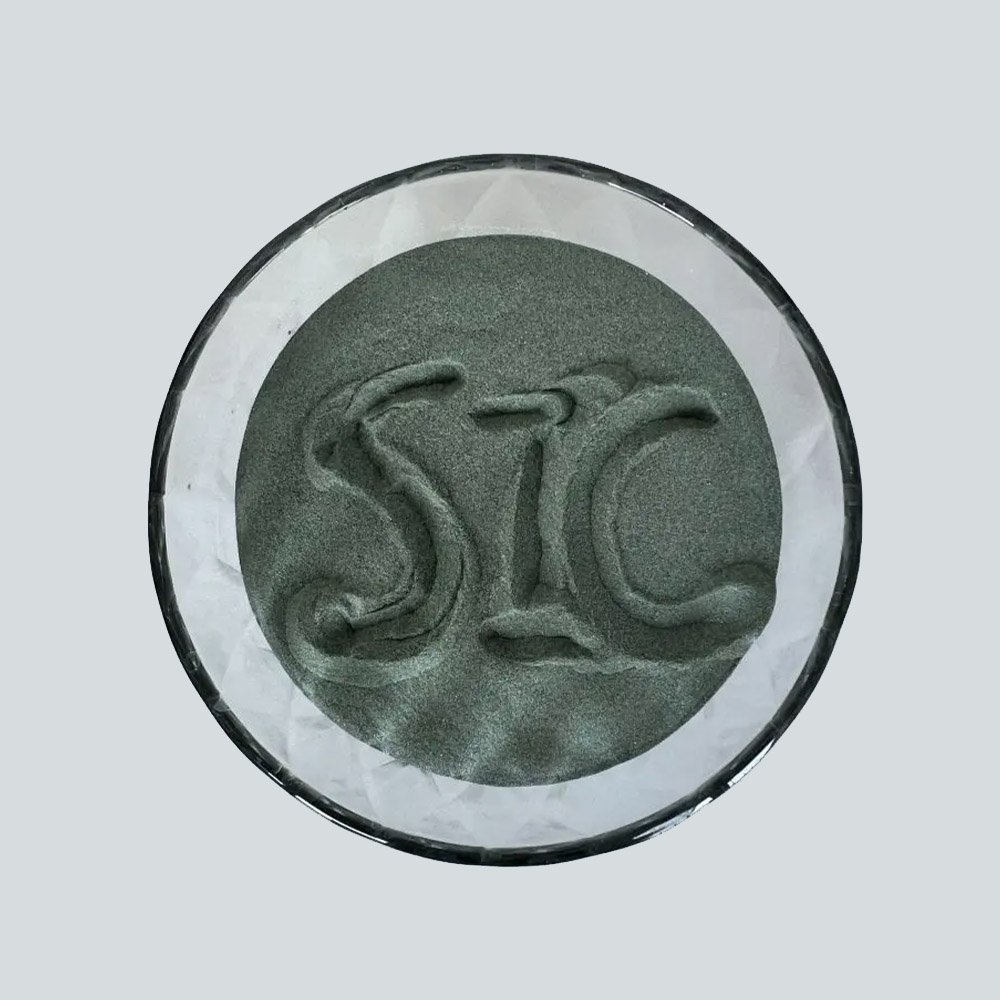

Green silicon carbide powder- Green SIC
Silicon carbide is produced by high-temperature smelting of raw materials such as quartz sand, petroleum coke (or coal coke), and table salt in a resistance furnace. The product is hexagonal crystal with a specific gravity of 3.20-3.25 and a microhardness of 2840-3320kg/mm2, belonging to α- SiC.
Shandong Huayi Tech Co., Ltd manufactures Green Silicon Carbide powders by water classification at our factory in YANTAI, CHINA . All chemistry and sizing is controlled to meet exact customer requirements. Green silicon carbide powder is produced using core patented technology, with a concentrated and uniform particle size distribution in the product.
All Green Silicon Carbide manufactured at Shandong Huayi Tech Co., Ltd meets or exceeds ANSI and JIS or FEPA standards for product quality.
Silicon carbide (SiC) is a man-made mineral with high hardness, excellent thermal and electrical conductivity, and resistance to high-temperature oxidation.
Silicon carbide has a hardness of up to 9.4 (Mohs hardness 9.4/Knoop hardness 2600), exhibiting high strength.
It possesses high thermal conductivity and strength at high temperatures (at 1000℃, the strength of silicon carbide is 7.5 times that of aluminum oxide (Al₂O₃)). Silicon carbide has an elastic modulus of 410 GPa, its strength does not decrease below 1600℃, and it does not melt under normal pressure but decomposes at 2700℃.
| Micro powder | JIS R6001-1998 | FEPA | Chemical Composition | ||||||||
| SIZE | D3(um) | D50(um) | D94(um) | SIZE | D3 | D50 | D94 | SiC | Fe₂O₃ | F.C | |
| #240 | 103 | 57±3 | 40 | 99.8% | ≤0.3% | ≤0.2% | |||||
| #280 | 87 | 48±3 | 33 | F230 | 82 | 53±3 | 34 | 99.8% | |||
| #320 | 74 | 40±2.5 | 27 | F240 | 70 | 44.5±2 | 28 | 99.8% | |||
| #360 | 66 | 35±2 | 23 | F280 | 59 | 36.5±1.5 | 22 | 99.8% | |||
| #400 | 58 | 30±2 | 20 | F320 | 49 | 29.2±1.5 | 16.5 | 99.8% | |||
| #500 | 50 | 25±2 | 16 | 99.6% | |||||||
| #600 | 43 | 20±1.5 | 13 | F360 | 40 | 228.±1.5 | 12 | 99.6% | |||
| #700 | 37 | 17±1.3 | 11 | F400 | 32 | 17.3±1 | 8 | 99.6% | |||
| #800 | 31 | 14±1 | 9 | 99.4% | |||||||
| #1000 | 27 | 11.5±1 | 7 | F500 | 25 | 12.8±1 | 5 | 99.4% | |||
| #1200 | 23 | 9.5±0.8 | 5.5 | F600 | 19 | 9.3±1 | 3 | 99.4% | |||
| #1500 | 20 | 8±0.6 | 4.5 | 99.4% | |||||||
| #2000 | 17 | 6.7±0.6 | 4 | F800 | 14 | 6.5±1 | 2 | 99% | |||
| #2500 | 14 | 5.5±0.5 | 3 | 99% | |||||||
| #3000 | 11 | 4±0.5 | 2 | F1000 | 10 | 4.5±0.8 | 1 | 99% | |||
| #4000 | 8 | 3±0.4 | 1.3 | F1200 | 7 | 3±0.5 | 1(80%） | 99% | |||
| #6000 | 5 | 2±0.4 | 0.8 | 99% | |||||||
| #8000 | 3.5 | 1.2±0.3 | 0.6 | 99% | |||||||
| Ultrafine Powder | Ultrafine Powder for Making Ceramic | Chemical Composition | |||||||||
| SIZE | D50(um) | SiC | Fe₂O₃ | F.C | |||||||
| HY10 | 1.0±0.3 | ≥99% | ≤0.3% | ≤0.2% | |||||||
| HY08 | 0.8±0.05 | ||||||||||
| HY05 | 0.5±0.05 | ||||||||||
| Macro Grain Size | Size | SiC | Fe₂O₃ | F.C | |||||||
| Grit F4-F220 | ≥99% | ≤0.3% | ≤0.2% | ||||||||
Product Advantage
Concentrated and uniform particle distribution without large particles
The product has low impurities and high purity
Can be customized according to needs
Company Introduction
Shandong Huayi Tech New Materials Co., Ltd. is located in China and was established in 2018. The company is committed to the development and application of materials such as silicon carbide and boron carbide in multiple industries.

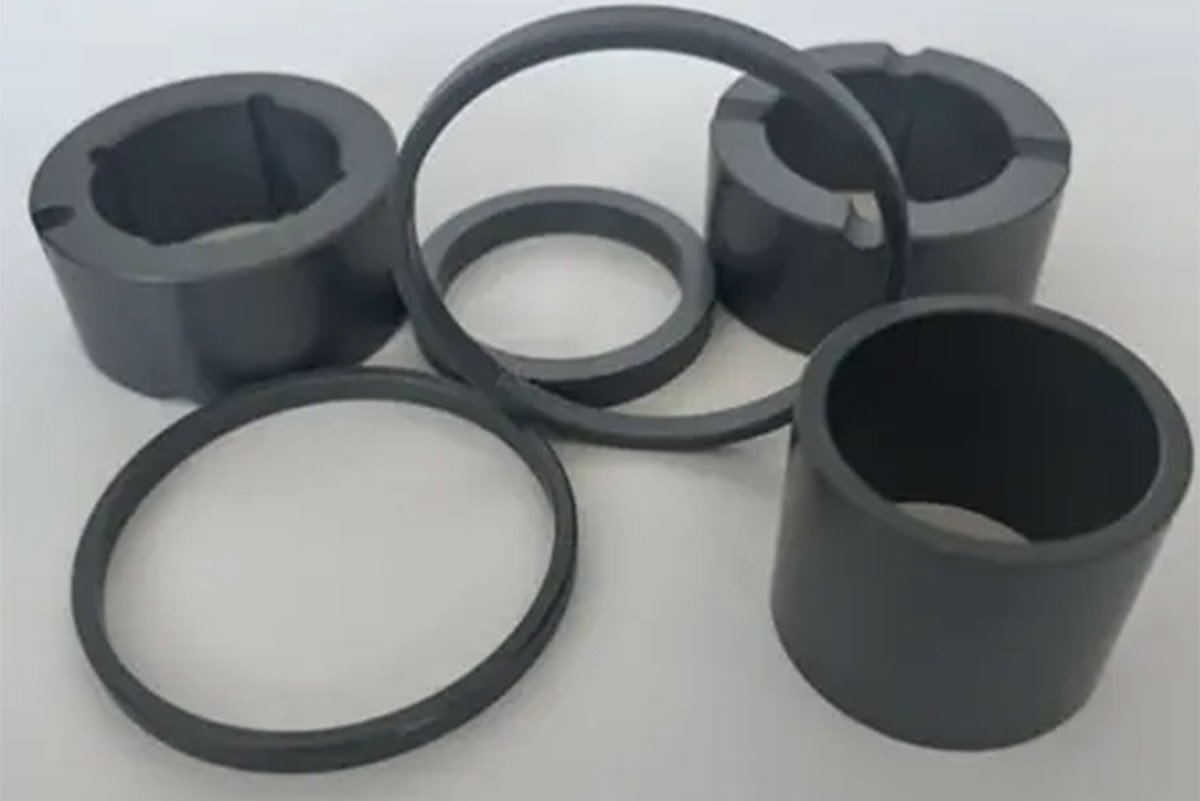

The company's main products are silicon carbide powder and ceramics, boron carbide powder and ceramics, silicon carbide ceramic films, nuclear power boron carbide materials, etc. These products are widely used in the nuclear power industry, military industry, environmental protection, new energy, chemical industry and other fields.
Product Application

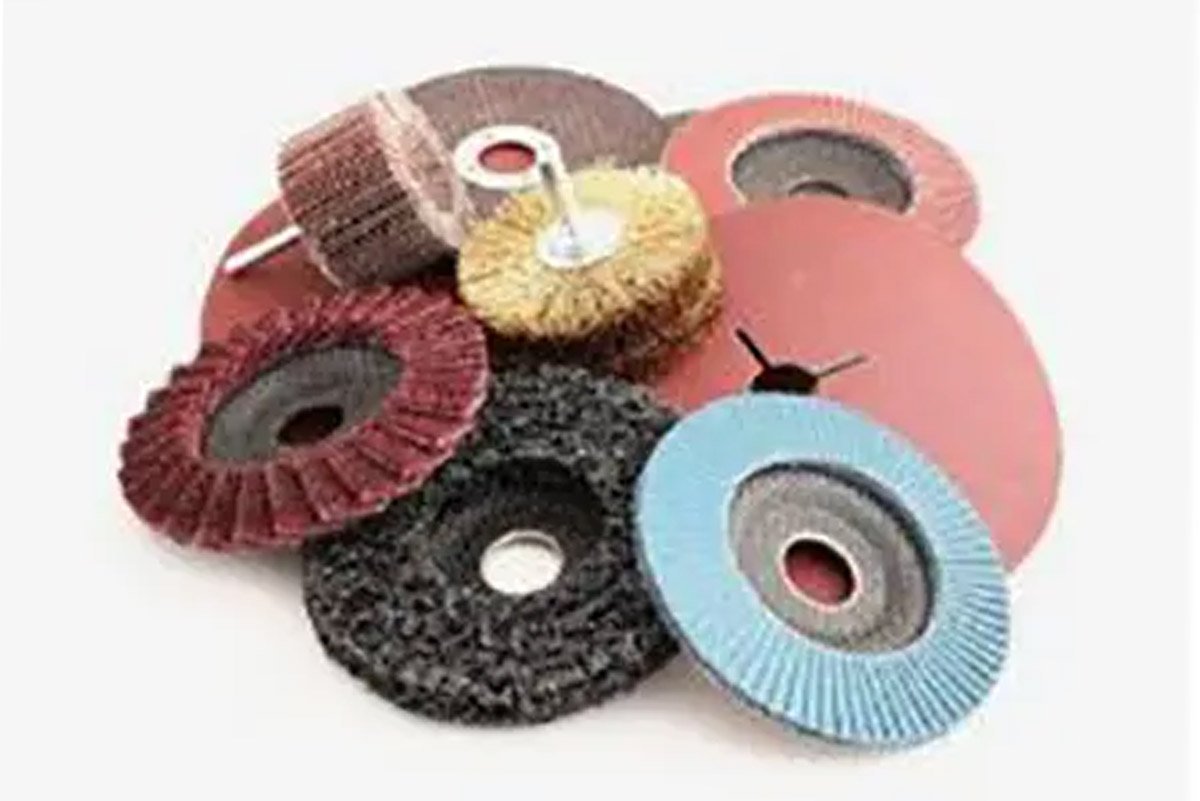

High-purity green silicon carbide can be made into binders of various complex shapes and can also be used as bulk abrasive. Its applications include ceramic and resin grinding wheels, honing stones, blasting particles/powders, abrasives, grinding, polishing, and more.
