B4C neutron shielding block- Nuclear power boron carbide block

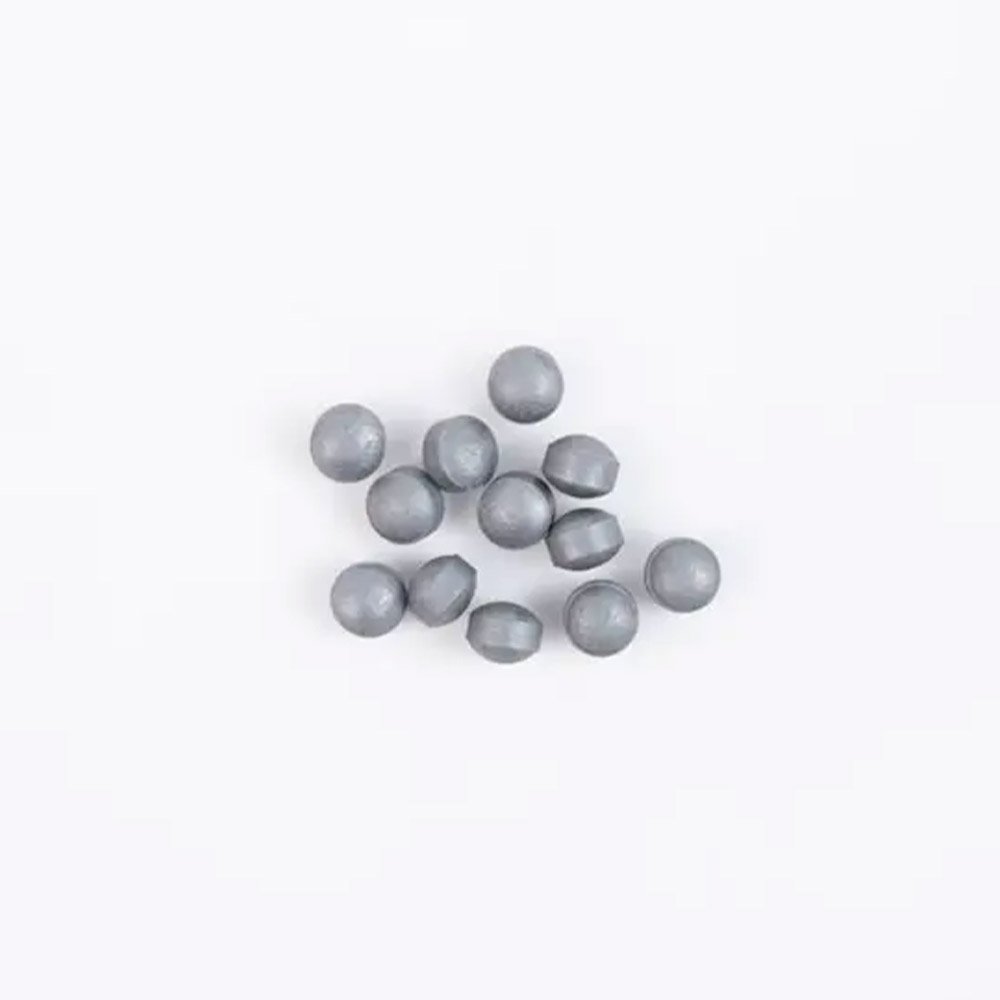

Nuclear power grade boron carbide materials can be applied to high-purity boron carbide neutron absorption balls, high-purity boron carbide neutron absorption bricks, neutron detectors, neutron detectors, aluminum based boron carbide materials, composite boron carbide neutron absorption balls, boron containing concrete, boron containing carbon bricks, etc.

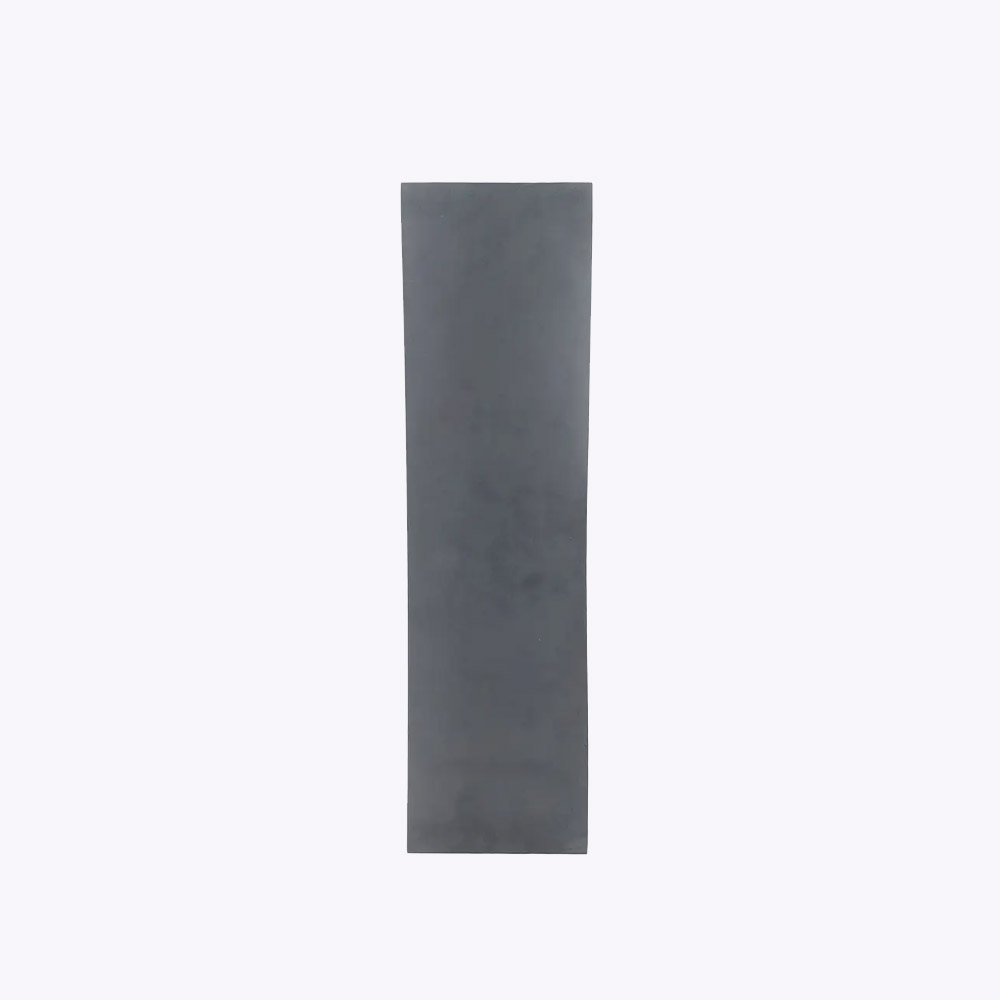

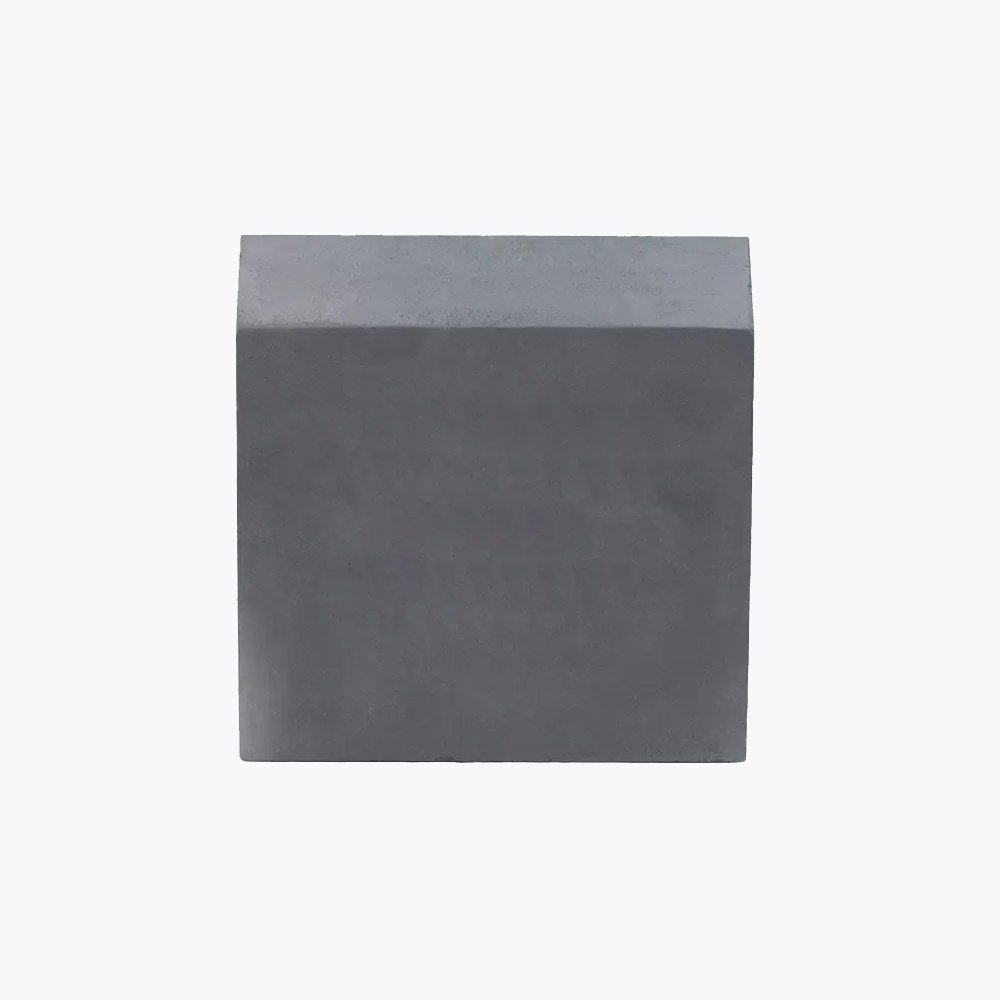

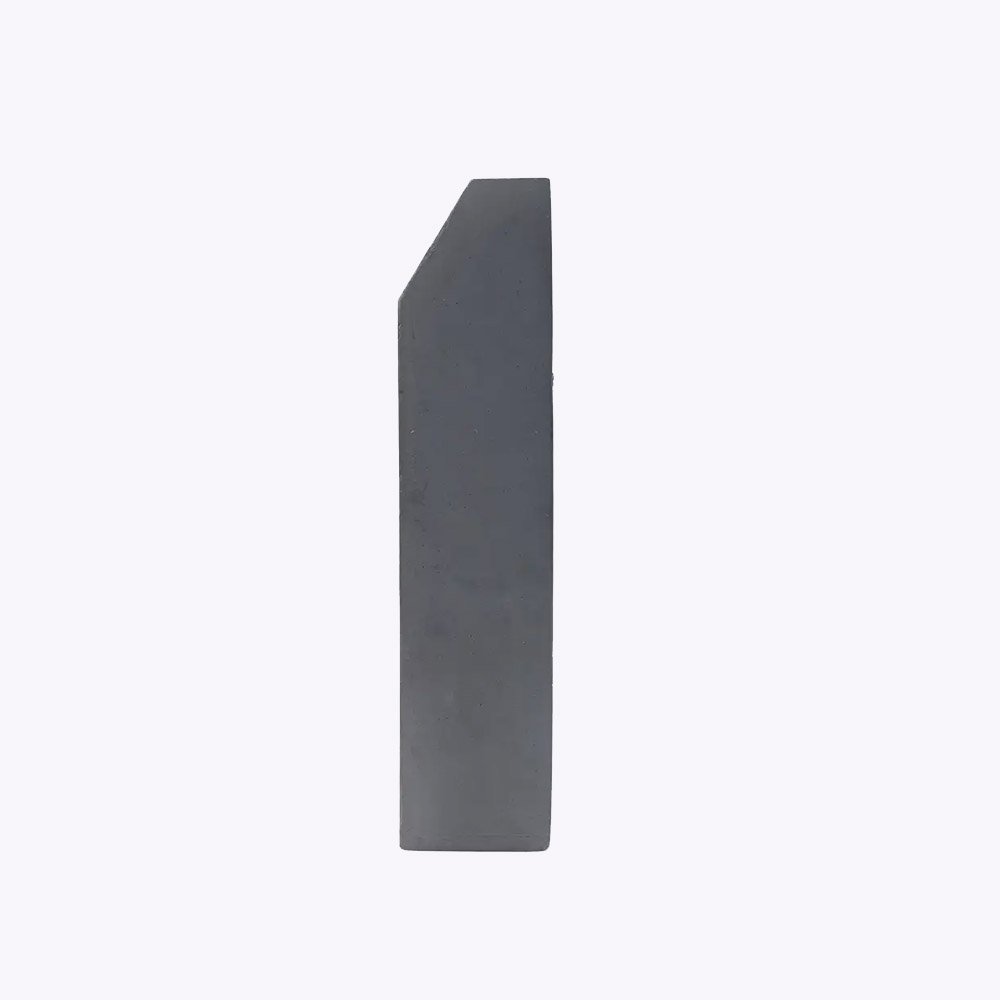

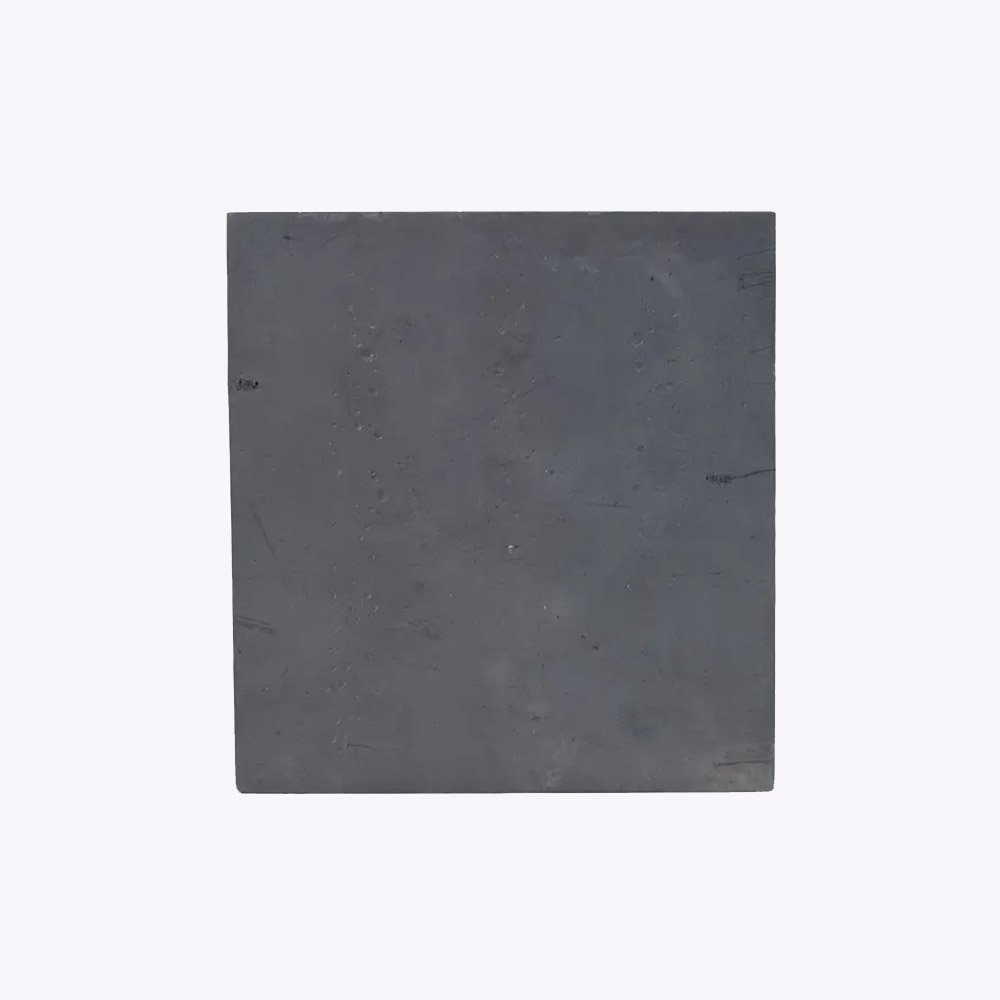

The company can mass produce boron carbide control rod cores, boron carbide protective balls, boron carbide shielding plates, boron carbide protective bricks and other boron carbide products.

The product can be made into flat and curved surfaces, with a customizable size range of 10-500mm and a customizable thickness range of 0.2-80mm. The density range of the product is between 1.5-2.52g/cm ³.

Product Details

Product Details

Natural boron B has two stable isotopes, namely B10 and B11. Among them, B10 has extremely high thermal neutron absorption capacity, with a cross-section as high as 3837 targets, and a wide absorption energy spectrum. After absorbing neutrons, it does not produce strong secondary radiation and is easy to post-process. In the nuclear industry, it has advantages such as efficient and stable absorption of neutron radiation, and no secondary radiation release.

The technology possessed by the company has improved the purity of the materials. The company has also improved its sintering process and reduced the loss rate of boron carbide materials.

Regarding the production of ceramics, the company has two processes: pressureless sintering and hot pressing sintering. Products with different processes have different advantages and are suitable for different scenarios. Pressureless sintered ceramics have high cost-effectiveness and are suitable for mass production. They are suitable for use as bulletproof materials, seals, nozzles, wear-resistant and temperature resistant materials, as well as common nuclear power materials. Ceramics produced by hot pressing sintering are suitable for small-scale production, can be made into larger sizes, and are suitable for use as nuclear power core materials, semiconductor materials, target materials, and bulletproof materials.

Product Technical Parameters

Type	Parameter value
Main Components	B4C≥99.5%
Density(g/cm3)	1.5-2.52
Total Boron	75～81.0%
Free boron	≤0.5%
Free carbon	≤0.5%
Iron	≤0.1%
Total B+C	≥99%

Company Introduction

Shandong Huayi Tech New Materials Co., Ltd. is located in China and was established in 2018. The company is committed to the development and application of materials such as silicon carbide and boron carbide in multiple industries.

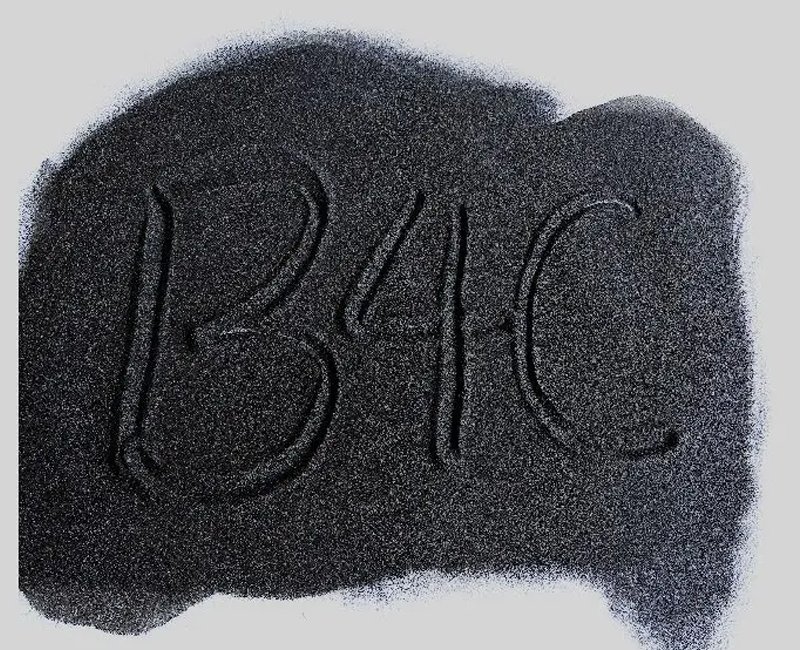

The company's main products are silicon carbide powder and ceramics, boron carbide powder and ceramics, silicon carbide ceramic films, nuclear power boron carbide materials, etc. These products are widely used in the nuclear power industry, military industry, environmental protection, new energy, chemical industry and other fields.
